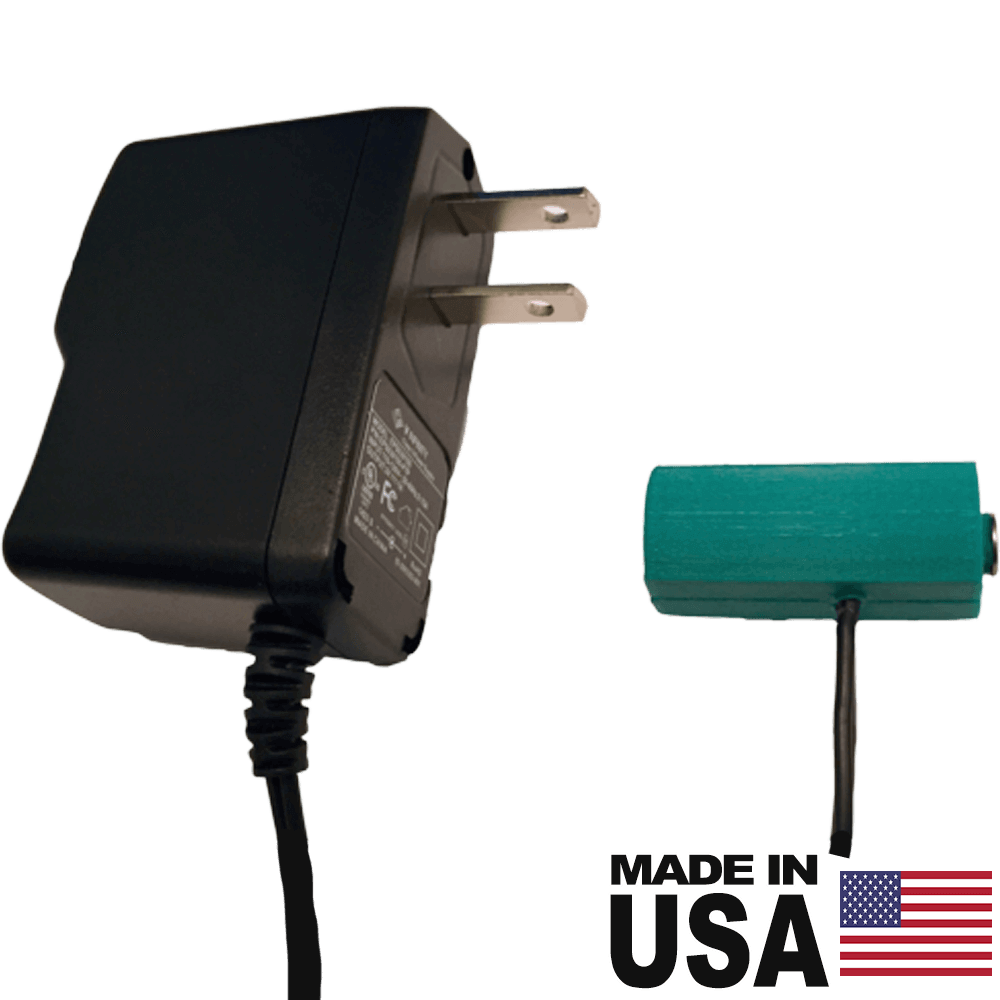

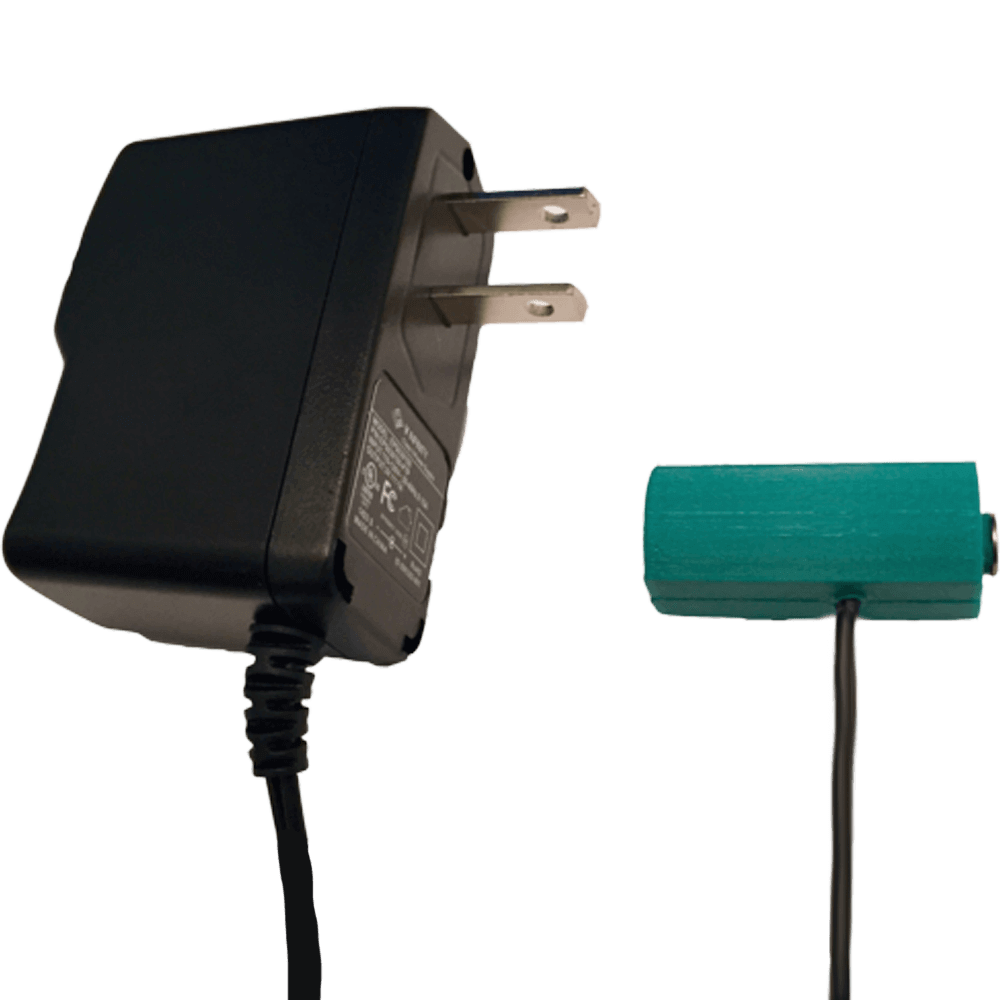

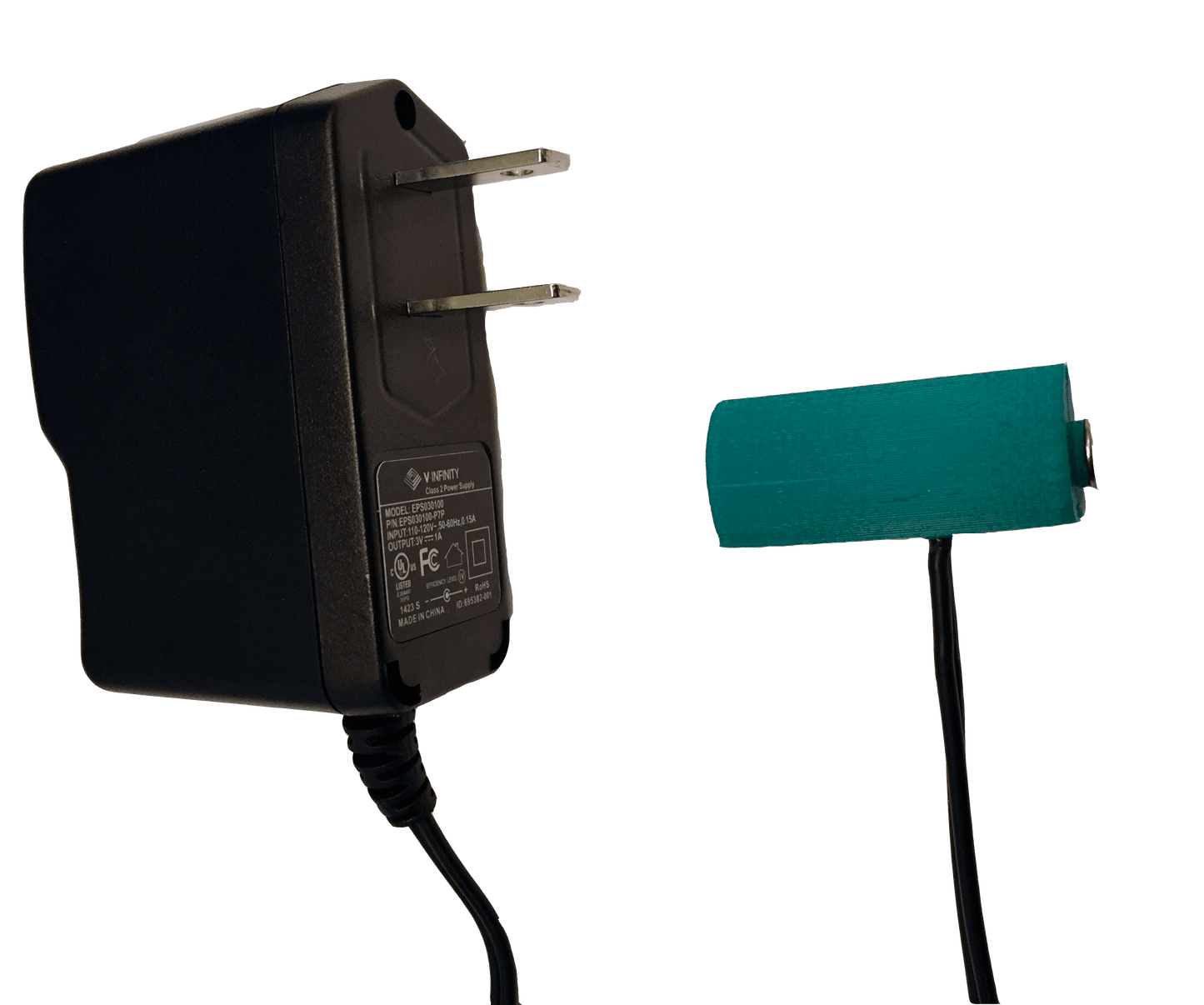

Replaces 1 "CR123A Photo Lithium" battery. Plug-in-wall AC power source. 3 VDC compatible output up to 1 Amp max current (1000mA). 100-120VAC power source, not international compatible. Includes one Active Cell.
This cell goes by many names, including: 123, 123A, BR2/3A, CR123, CR123A, CR123R, CR17335, CR17345, DL123A, EL123AP, K123LA, L123A, SF123A, VL123A, 5018LC
Standard cable length 5ft. Custom lengths available from DIY/OPTIONS tab above.
Applications: Wireless home security products like Zwave Door/Window Sensor. http://www.discoverecolink.com/product/dwzwave2-eco/
3.3 Volts DC - up to 1500mA (1.5 Amp)

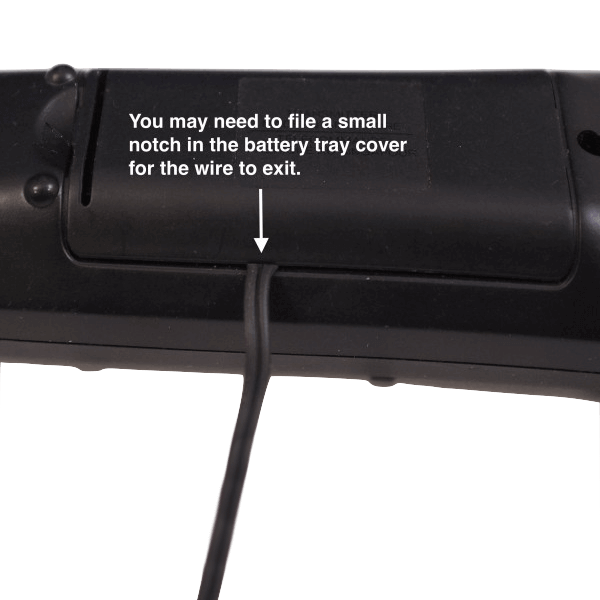

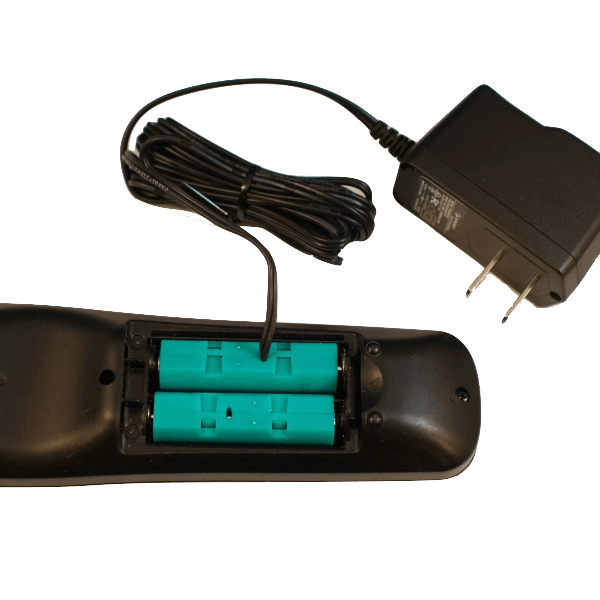

Our CR123A Battery Eliminators fit into the battery compartment of your device the same way as a standard CR123A sized battery. Our CR123A Active Cell receives power from a thin flat cable that is run under your battery compartment cover. You may have to file a small slot in the battery cover for a perfect fit using a file (included). Our CR123A Dummy Cells fit into the remaining battery spaces in your battery compartment and complete the circuit which powers your device. The appropriate voltage for the number of cells being replaced is provided by our power unit. Please purchase a Battery Eliminator that matches the total number of cells in your device to ensure the proper voltage is delivered. Choose an AC Source model for use with either US/Canada (120VAC) or International (100-240VAC 50/60Hz) wall current. Choose a DC Source model for use in a vehicle or other 12VDC - 28VDC portable power source. Choose a USB power source (~5VDC up to 500 mA) for use with a USB port on a phone charger, computer, portable battery pack, or any other USB port device.
Battery Eliminator advantages:
- Save Money: No more batteries to buy, ever again.
- Save Time: Don't waste time buying and changing batteries.
- Save the Planet: Dead batteries in landfills are toxic waste. Precious metals and materials are finite and not easily reused.
- Maximize Your Productivity: Batteries always die when you least expect it or right in the middle of inspiration or focused and critical activities.
OEMs: We pride ourselves in providing custom battery eliminators and power solutions to OEMs and individuals for a wide range of industries from medical equipment, industrial instrumentation, aviation, pro audio, gadgets, toys and more. Please contact us with your needs.
