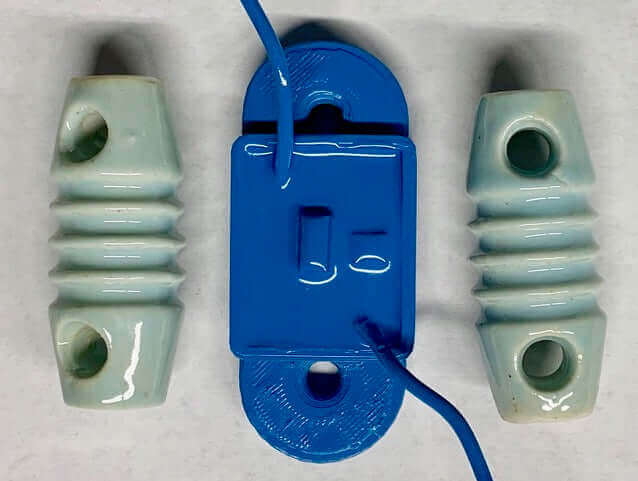

- 1-800 watt load
- 2- end insulators

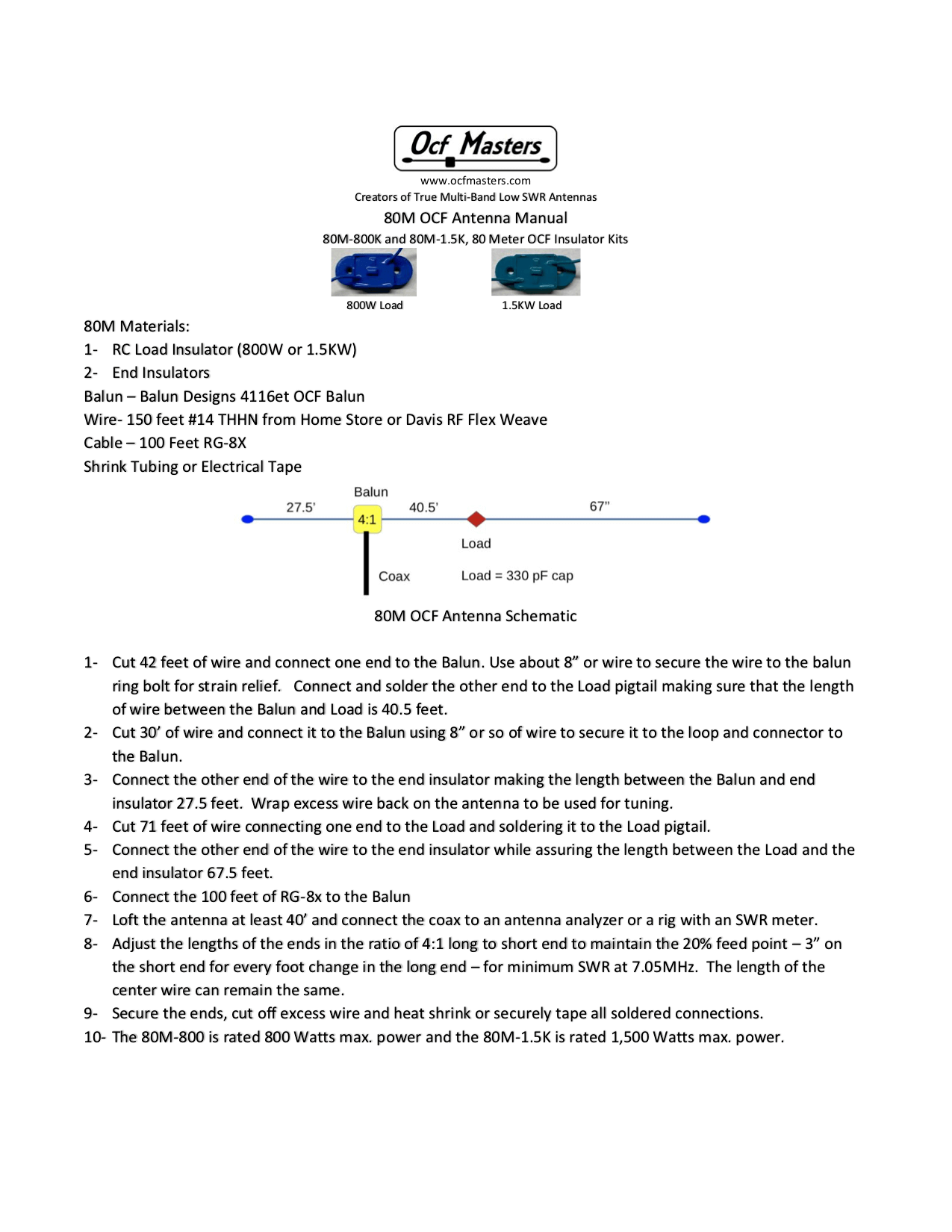

- Antenna Construction instructions
80 Meter 800-Watt Load & Insulator Kit
This is an awesome antenna that has exceeded my expectations. After much research I decided that my first long wire antenna would be an OCF Dipole design. The OCF Master design uses a capacitive tuned element that allows for a shorter overall length. The construction is top quality, and because I assembled the antenna myself I was able to set the resonant frequency to meet my preference for FT8 usage. I followed the detailed instructions and built the dual balun feed unit myself with no problems. I don't have large trees in my yard, but I was able to get the antenna installed at a height of about 25'. From the day of installation I have been making DX contacts all over Europe and South America. I have heard (but not completed a QSO yet) stations in AK and HI as well as the Far East and Asia. Please check out this antenna, I highly recommend it as a quality choice.
